6T30
TengTeng
TTO1M001
109700K1K2
122*1.60*24T
1.57
Cross
Yellow Black
| Quantity: | |
|---|---|
| Model No. | 6T30 |
| Application | Auto Transmission Parts |
| Warranty | 12 months |
Introduction to valve body and partition products for automotive transmission accessories
1、 Product Overview

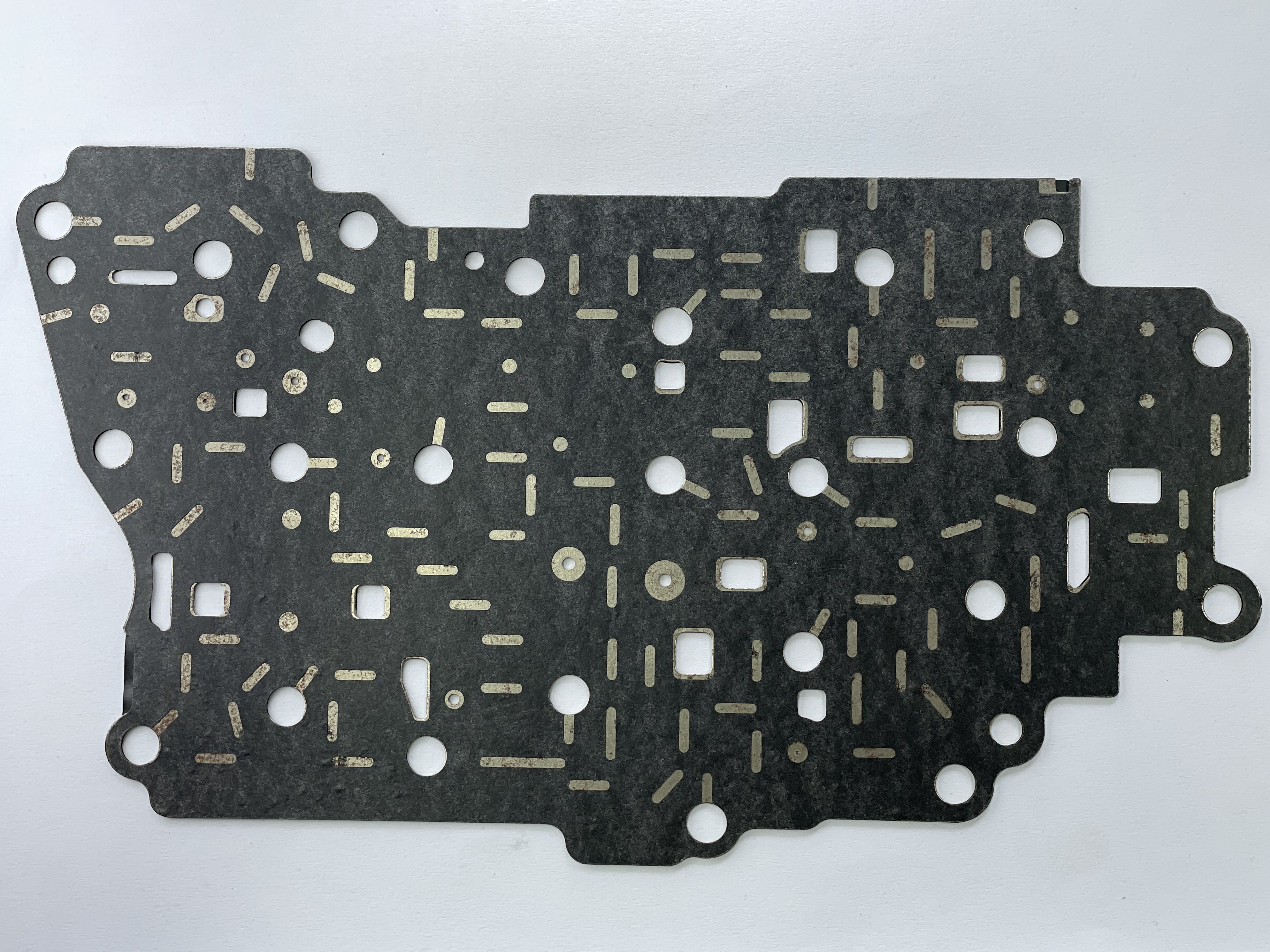

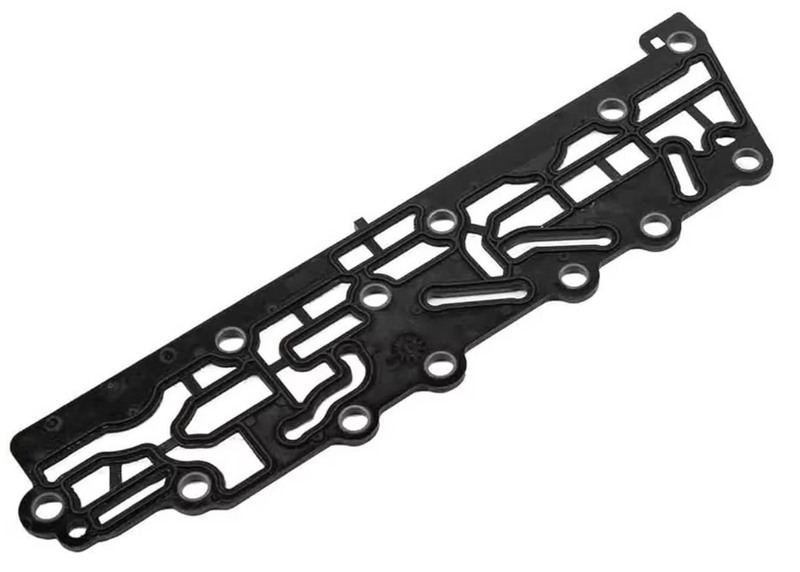

The partition plate of the automobile transmission valve body is the core component of the automatic transmission valve body, located between the control valve and the hydraulic channel. It separates the oil circuit through precision designed oil passages and holes, guiding the flow of hydraulic oil. Its performance directly affects the shifting accuracy, response speed, and service life of the gearbox, and is a key component to ensure the efficient operation of automatic transmissions.
2、 Core functions
1. Oil circuit control
By accurately distributing hydraulic oil flow, pressure, and direction through serpentine oil passages and through holes, automatic shifting of the gearbox is achieved.
Cooperate with components such as solenoid valves and control valves to adjust the shifting timing according to parameters such as vehicle speed and engine load, ensuring smooth shifting and optimal efficiency.
2. Sealing and Separation
The partition separates the hydraulic system of the transmission input shaft from the output shaft, preventing oil circuit interference and ensuring independent operation of each gear.
Using oil resistant and wear-resistant materials such as polyurethane rubber rings and asbestos rubber sheets to ensure no leakage under high pressure conditions
Tip: Our automotive parts are suitable for most models on the market. If you need to place an order, please consult customer service.
