Have you ever wondered what makes your vehicle's clutch engage so smoothly? Friction plates play a crucial role in this process. These essential components ensure efficient power transfer in automotive, motorcycle, and machinery systems. In this post, you'll learn about the importance of friction plates and explore the common materials used: steel, paper, and carbon fiber, to understand their unique benefits and applications.
Steel friction plates are a fundamental component in many clutch friction plate assemblies, particularly in automotive and motorcycle transmissions. These plates typically consist of high carbon steel or alloy steel, chosen for their excellent mechanical strength and heat resistance. The steel core provides a rigid, durable base that supports the friction material applied to its surface. This combination ensures the clutch friction disc can withstand the intense pressure and heat generated during engagement and disengagement cycles.Steel friction plates exhibit high thermal conductivity, which helps dissipate heat quickly, reducing the risk of warping or failure under extreme conditions. They also offer consistent friction performance, maintaining a stable friction coefficient even at elevated temperatures. This stability is critical for smooth clutch operation and reliable torque transfer.
Steel friction plates provide several advantages in clutch and transmission systems:
Durability: Steel's high tensile strength resists cracking, deformation, and wear, extending the clutch plate’s service life.
Heat Resistance: Steel plates tolerate high temperatures without losing structural integrity, essential for high-stress applications like racing or heavy-duty trucking.
Consistent Performance: They maintain stable friction coefficients, ensuring predictable engagement and disengagement.
Compatibility: Steel plates easily bond with various friction materials, including organic composites and carbon fiber, enhancing performance versatility.
Cost-Effectiveness: While not the cheapest option, steel strikes a good balance between cost and longevity compared to exotic materials.
Steel friction plates are widely used in:
Automotive Clutches: Both manual and automatic transmission friction plates often utilize steel cores for strength and heat management.
Motorcycle Clutch Friction Plates: Motorcycles demand lightweight yet durable friction plates; steel provides the necessary rigidity without excessive weight.
Heavy Machinery: Industrial transmissions and agricultural equipment rely on steel friction plates for their robustness under continuous heavy loads.
Wet and Dry Clutch Systems: Steel plates are adaptable to both wet (oil-cooled) and dry clutch configurations, making them highly versatile.
When compared to paper and carbon fiber friction plates, steel plates stand out for their mechanical strength and heat dissipation but are generally heavier. Paper friction plates are lighter and offer good initial grip but tend to wear faster and have lower heat tolerance. Carbon fiber friction plates excel in weight savings and heat resistance, often used in high-performance or racing applications, but come at a significantly higher cost.Loading Sheets. Please try again after it's finished.Steel friction plates remain a reliable choice for many standard and heavy-duty clutch friction disc applications, offering a balance of performance, durability, and cost.
Tip: When selecting steel friction plates for transmission systems, prioritize high carbon steel variants to maximize heat resistance and wear life under high-stress conditions.

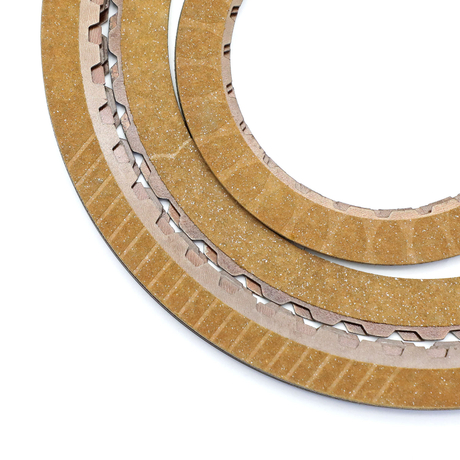

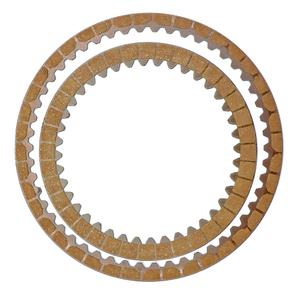

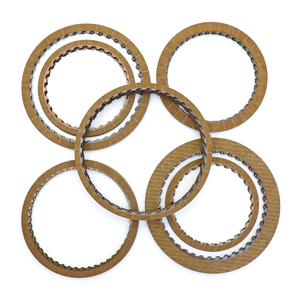

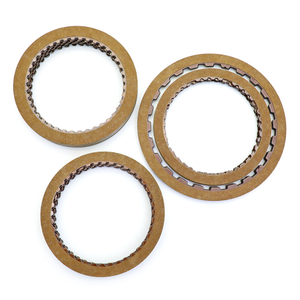

Paper friction plates, often used in clutch friction disc assemblies, consist primarily of cellulose fibers combined with resin binders and fillers. These fibers are typically derived from plant materials such as wood pulp or cotton, interwoven to create a strong, flexible matrix. The resin acts as a binder, holding the fibers together while providing heat resistance and structural integrity. This composite structure results in a friction plate that is lightweight yet capable of generating sufficient friction to engage the clutch effectively.Unlike steel friction plates, paper-based friction plates do not have a metal core. Instead, they rely on the dense fiber-resin matrix to provide the necessary friction characteristics. The porous nature of paper friction plates also allows for better oil absorption, making them suitable for wet clutch systems where lubrication is essential.
Paper friction plates offer several advantages within clutch friction plate materials:
Lightweight: Their low density reduces the overall weight of the clutch assembly, improving responsiveness, especially in motorcycle clutch friction plates.
Smooth Engagement: The fiber matrix provides a softer surface, resulting in less abrupt engagement and reduced noise during clutch operation.
Cost-Effective: Paper friction plates are generally less expensive to manufacture than steel or carbon fiber plates, making them a budget-friendly option.
Good Initial Grip: They provide reliable friction coefficients at lower temperatures, ideal for everyday driving conditions and automatic transmission friction plates.
Oil Compatibility: Their porous structure allows oil to permeate, which helps with cooling and reduces wear in wet clutch systems.
Paper friction plates are widely used in various applications where moderate performance and cost efficiency are prioritized:
Automatic Transmission Friction Plates: Their ability to absorb oil and provide smooth engagement makes them suitable for automatic transmissions.
Motorcycle Clutch Friction Plates: Lightweight and smooth operation are critical here, and paper friction plates meet these needs effectively.
Small Machinery: Agricultural and light industrial equipment often use paper-based friction plates due to their cost-effectiveness and adequate durability.
Wet Clutch Systems: The oil absorption characteristic enhances cooling and extends service life in wet clutch environments.
Paper friction plates have an environmental edge compared to steel and carbon fiber options. Since they are primarily derived from renewable plant fibers, their production has a lower carbon footprint. Additionally, paper friction plates are often more biodegradable and easier to recycle than synthetic or metal-based materials. However, the resins and fillers used can affect biodegradability, so manufacturers are increasingly exploring eco-friendly binders to improve sustainability.Despite these benefits, paper friction plates generally have a shorter lifespan and lower heat resistance, which may lead to more frequent replacements. This trade-off can impact overall environmental sustainability if not managed properly through recycling and responsible disposal.
Tip: When selecting paper friction plates for automatic transmission or motorcycle clutch friction plate applications, prioritize products with high-quality resin binders to improve heat resistance and extend service life.

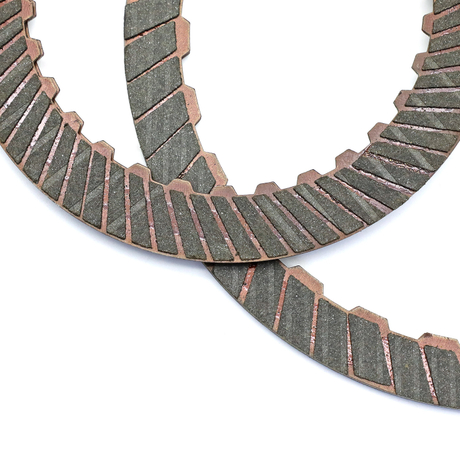

Carbon fiber friction plates are engineered from woven carbon fibers bonded with high-temperature resin matrices. This composite structure offers exceptional strength-to-weight ratios, making carbon fiber clutch friction discs significantly lighter than steel or paper alternatives. The fibers provide outstanding tensile strength, while the resin matrix maintains structural integrity under stress.This material delivers excellent thermal stability, resisting degradation at temperatures well beyond those tolerated by traditional friction plate materials. Carbon fiber friction plates also exhibit low thermal expansion, which minimizes warping during intense heat cycles typical in high-performance clutch systems.Additionally, carbon fiber’s inherent stiffness and fatigue resistance contribute to sustained performance over extended use. These properties make carbon fiber a top choice for applications where weight reduction and heat management are critical.
Using carbon fiber friction plates in clutch systems brings several performance advantages:
Lightweight Construction: Reduces rotational mass, improving throttle response and overall drivetrain efficiency.
Superior Heat Resistance: Maintains friction coefficient and structural integrity at extremely high temperatures, preventing fade during aggressive use.
Durability: Exhibits excellent wear resistance and fatigue life, resulting in longer service intervals.
Consistent Friction: Offers stable and predictable engagement characteristics, enhancing driver control.
Reduced Thermal Deformation: Minimizes distortion, ensuring smooth clutch operation even under high-stress conditions.
These benefits make carbon fiber friction plates ideal for racing, high-performance motorcycles, and advanced automatic transmission friction plates where reliability and responsiveness are paramount.
Carbon fiber clutch friction discs are predominantly used in sectors demanding peak performance and longevity:
Motorsports: Racing cars and motorcycles benefit from carbon fiber’s lightweight and heat tolerance, enabling rapid gear shifts without clutch fade.
High-Performance Motorcycles: Manufacturers often specify carbon fiber friction plates to optimize power delivery and reduce unsprung weight.
Automatic Transmission Friction Plates: Some premium automatic transmissions incorporate carbon fiber to enhance durability and heat management.
Aerospace and Specialty Vehicles: Applications requiring extreme reliability under high load and temperature conditions also leverage carbon fiber friction plates.
While carbon fiber friction plates excel in these demanding environments, their higher cost limits widespread use in everyday passenger vehicles.
When compared side-by-side with steel and paper friction plates, carbon fiber stands out in several key areas:Loading Sheets. Please try again after it's finished.Carbon fiber friction plates deliver the best combination of weight savings, heat resistance, and durability. However, they come at a premium price and require precise manufacturing processes. Steel plates offer a balanced approach for most applications, while paper plates remain cost-effective for moderate performance needs.
Tip: For high-performance motorcycle clutch friction plate applications, choosing carbon fiber friction plates can significantly improve heat management and reduce rotational mass, enhancing overall vehicle responsiveness.
When evaluating friction plate materials, heat resistance and durability are critical, especially for clutch friction plates used in high-performance or heavy-duty applications. Steel friction plates excel in heat dissipation due to their high thermal conductivity, which helps maintain structural integrity under continuous high temperatures. They resist warping and cracking better than paper friction plates, which have lower heat tolerance and tend to degrade faster under intense heat.Carbon fiber friction plates offer superior heat resistance compared to both steel and paper. Their ability to maintain friction stability at extreme temperatures makes them ideal for racing and high-stress motorcycle clutch friction plate applications. Additionally, carbon fiber’s fatigue resistance contributes to exceptional durability over long service intervals.
Cost is a significant factor when selecting clutch plate materials. Paper friction plates are the most cost-effective option and widely accessible, making them popular in automatic transmission friction plates and everyday motorcycle clutch friction plate applications. They provide reasonable performance at a fraction of the cost of steel or carbon fiber plates.Steel friction plates offer a balance between cost and performance. While more expensive than paper, they are less costly than carbon fiber and provide longer service life and better heat tolerance. This makes steel plates a common choice for standard automotive and industrial friction plates transmission systems.Carbon fiber friction plates, although top-tier in performance, come with a high price tag. Their manufacturing process is complex, limiting their use primarily to high-end or specialized applications where performance justifies the expense.
From an environmental perspective, paper friction plates have the advantage of being made from renewable fibers and generally exhibit better biodegradability. Their production has a lower carbon footprint compared to steel and carbon fiber plates. However, the resins used can affect recyclability, so eco-friendly binders are becoming more important.Steel friction plates involve energy-intensive manufacturing processes and mining, which contribute to environmental impact. However, steel is highly recyclable, which helps mitigate its footprint.Carbon fiber friction plates pose environmental challenges due to the energy required for production and difficulties in recycling composite materials. Despite this, their long service life can offset some environmental costs by reducing replacement frequency.
In high-stress conditions such as racing, heavy towing, or aggressive motorcycling, the performance of friction plates is paramount. Carbon fiber friction plates outperform steel and paper in maintaining friction stability, resisting thermal fade, and minimizing deformation under extreme loads. This ensures reliable clutch engagement and longevity.Steel friction plates provide consistent performance and durability in demanding environments but may add weight and slightly less heat tolerance compared to carbon fiber.Paper friction plates are generally unsuitable for high-stress conditions due to their lower heat resistance and faster wear rates. They perform best in moderate stress applications where smooth engagement and cost-efficiency are priorities.
Tip: When selecting friction plates for high-stress transmissions, prioritize materials with superior heat resistance and durability, such as carbon fiber for performance or steel for balanced cost and longevity.
Choosing the appropriate friction plate material depends on several key factors. First, consider the operating environment. High-temperature conditions, such as those in racing or heavy-duty transmissions, demand materials with excellent heat resistance like carbon fiber or steel. For applications requiring smooth engagement and moderate heat tolerance, paper friction plates may suffice.Next, assess the required durability and wear resistance. Steel friction plates offer strong mechanical durability, while carbon fiber excels in fatigue resistance and longevity. Paper friction plates, though lighter, wear faster and suit less demanding uses.Weight is another important consideration. Motorcycle clutch friction plates benefit from lighter materials like paper or carbon fiber to improve responsiveness. Conversely, heavier steel plates are common in automotive friction plates transmission systems where weight is less critical.Cost also plays a major role. Paper friction plates are generally the most affordable, making them ideal for budget-conscious projects. Steel offers a balance between cost and performance, while carbon fiber is the premium choice for high-end or specialized applications.
Balancing cost and performance means understanding trade-offs. If budget limits are tight, paper friction plates provide acceptable performance for automatic transmission friction plates or everyday motorcycle clutch friction plate use. However, they may need more frequent replacement.Steel friction plates offer a middle ground, delivering reliable plate friction and durability at a moderate price. They suit most standard automotive and industrial applications well.Carbon fiber friction plates deliver unmatched performance but at a higher cost. Their benefits in weight reduction, heat resistance, and durability justify the investment in racing, heavy towing, or performance motorcycle clutches.
Different industries favor specific friction plate materials:
Automotive: Steel friction plates dominate due to their balance of durability and cost. Paper plates appear in automatic transmission friction plates, while carbon fiber is rare except in high-performance models.
Motorcycle: Lightweight paper and carbon fiber friction plates are preferred for better throttle response and heat management.
Heavy Machinery: Steel friction plates are standard for their robustness under continuous load.
Racing and Performance: Carbon fiber friction plates are the top choice for superior heat resistance and minimal weight.
The future of friction plate materials points to innovation in composites and eco-friendly options. Advances in carbon fiber manufacturing may reduce costs, making high-performance friction plates more accessible. Additionally, research into sustainable binders and recyclable materials aims to improve the environmental footprint of friction plates.Hybrid friction plates combining steel cores with advanced composite friction materials are also emerging, offering customized performance tailored to specific applications. Industry professionals should stay informed about these trends to optimize clutch friction disc performance and longevity.
Tip: When selecting friction plate materials, align your choice with application demands—prioritize carbon fiber for high-performance needs, steel for balanced durability and cost, and paper for budget-friendly, moderate-use scenarios.
Steel, paper, and carbon fiber friction plates each offer unique benefits for clutch systems. Steel provides durability and heat resistance, while paper is lightweight and cost-effective. Carbon fiber excels in performance and heat management but is pricier. Industry professionals should consider application demands when selecting materials. Teng Teng transmission offers friction plates tailored to specific needs, enhancing performance and longevity. Their products provide value through innovative materials and expert services, ensuring optimal clutch system performance.
A: Steel friction plate materials offer high durability and heat resistance. Paper friction plates are lightweight and cost-effective but have lower heat tolerance. Carbon fiber friction plates excel in weight reduction and heat management, ideal for high-performance applications.
A: Steel friction plates are favored for automotive clutches due to their durability, consistent friction performance, and heat resistance, ensuring reliable torque transfer in both manual and automatic transmission friction plates.
A: Paper friction plates are beneficial for motorcycle clutch systems because of their lightweight nature, which enhances responsiveness, and their ability to provide smooth engagement, making them ideal for everyday use.
A: Yes, carbon fiber friction plates are worth the investment in racing applications due to their superior heat resistance, lightweight construction, and durability, which maximize performance and reliability under extreme conditions.
A: Yes, friction plate materials impact environmental sustainability. Paper friction plates have a lower carbon footprint due to renewable fibers, while steel is recyclable. Carbon fiber poses challenges but offers long service life, reducing replacements.
