Understanding the types of transmission systems is crucial for anyone interested in how vehicles transfer power from the engine to the wheels. There are two main types: manual transmission systems and automatic transmission systems. Each has its unique components and ways of working.
Manual transmissions require the driver to manually select and engage gears using a clutch and gear shift lever. This system offers more control over the vehicle’s speed and power delivery.
Key parts include:
● Clutch and Clutch Pedal: The clutch connects and disconnects the engine power to the transmission. Pressing the clutch pedal disengages the clutch, allowing smooth gear changes.
● Gearbox and Gear Shift Lever: The gearbox contains various gears that the driver selects using the gear shift lever. This controls the torque and speed sent to the wheels.
● Flywheel and Input Shaft: The flywheel stores rotational energy and connects to the clutch. The input shaft carries power from the clutch into the gearbox.
● Synchronizers and Selector Forks: Synchronizers help match gear speeds for smooth engagement, while selector forks move gears into place when shifting.
Manual systems demand more driver skill but provide precise control over the vehicle’s performance.
Automatic transmissions shift gears on their own, making driving easier and more convenient. They use a combination of mechanical, hydraulic, and electronic components to handle gear changes without driver input.
Key parts include:
● Planetary Gear Sets: These gear sets combine a sun gear, planet gears, and a ring gear to provide different gear ratios. They allow smooth transitions between gears without physically moving gears along shafts.
● Torque Converter: This replaces the clutch in automatics. It acts as a fluid coupling that transmits engine power to the transmission while allowing the vehicle to stop without stalling.
● Hydraulic System and Valve Body: This system uses pressurized transmission fluid to activate clutches and bands, controlling gear changes. The valve body directs fluid flow to the right components at the right time.
● Transmission Control Module (TCM): The TCM is a computer that manages shift points and gear changes based on data from sensors, optimizing performance and fuel efficiency.
Automatic transmissions provide a smooth, effortless driving experience and adapt to changing driving conditions.
Note: Choosing between manual and automatic transmissions depends on driver preference, vehicle use, and desired control over driving dynamics.
Manual transmissions are a fascinating blend of mechanical parts working together to give drivers full control over their vehicle’s power and speed. Let’s break down the key components that make manual transmissions tick.
The clutch is the gateway between the engine and the transmission. When engaged, it connects the engine’s power to the gearbox, allowing the car to move. Pressing the clutch pedal disengages the clutch, interrupting this connection so you can smoothly change gears without grinding. Think of it as a temporary pause button for power transfer. The clutch assembly includes the clutch disc, pressure plate, and flywheel, all working in harmony to manage this connection.
The gearbox, often called the transmission itself, houses a set of gears that control torque and speed. Inside, gears of various sizes mesh with each other. Smaller gears give higher speeds but less torque, while larger gears provide more torque but lower speeds. The gear shift lever is what you use to select these gears manually. Moving this lever engages different gear sets inside the gearbox, changing the vehicle’s speed and power output according to your needs.
The flywheel is a heavy, rigid disc attached to the engine’s crankshaft. It stores rotational energy and helps smooth out engine pulses. When the clutch engages, the flywheel transfers this energy to the clutch disc. From there, power flows into the input shaft, which carries it into the gearbox. The input shaft is the first step in the transmission’s power path after the clutch, spinning as the engine runs.
Synchronizers are clever components designed to match the speeds of gears before they engage. Without them, shifting gears would cause grinding and damage. They use friction plates to slow down or speed up gears, ensuring smooth engagement. Selector forks are the mechanical arms that move gears or collars into place when you shift. They slide gears along the shafts inside the gearbox, locking the desired gear to the output shaft for power transfer.
Note: Proper maintenance of clutch components and synchronizers is crucial; worn parts can cause slipping, difficulty shifting, or gear grinding, impacting driving safety and transmission longevity.
Automatic transmissions are marvels of engineering, combining mechanical, hydraulic, and electronic elements to shift gears smoothly without driver input. Understanding their main parts helps us appreciate how they work and how to maintain or upgrade them.
At the heart of an automatic transmission lies the planetary gear set. This clever system consists of three main parts: the sun gear in the center, planet gears that orbit the sun gear, and an outer ring gear. These gears stay meshed constantly but can be locked or released in different combinations to create various gear ratios.
● The sun gear is connected to one part of the transmission.
● The planet gears spin on a carrier that can also be locked or allowed to rotate.
● The ring gear encircles the planet gears and can be held stationary or spun.
By controlling which part is held or driven, the transmission can provide forward gears, reverse, or neutral. This setup allows smooth gear changes without physically sliding gears along shafts, unlike manual transmissions. Multiple planetary gear sets can work together to provide more gear ratios for better fuel efficiency and performance.

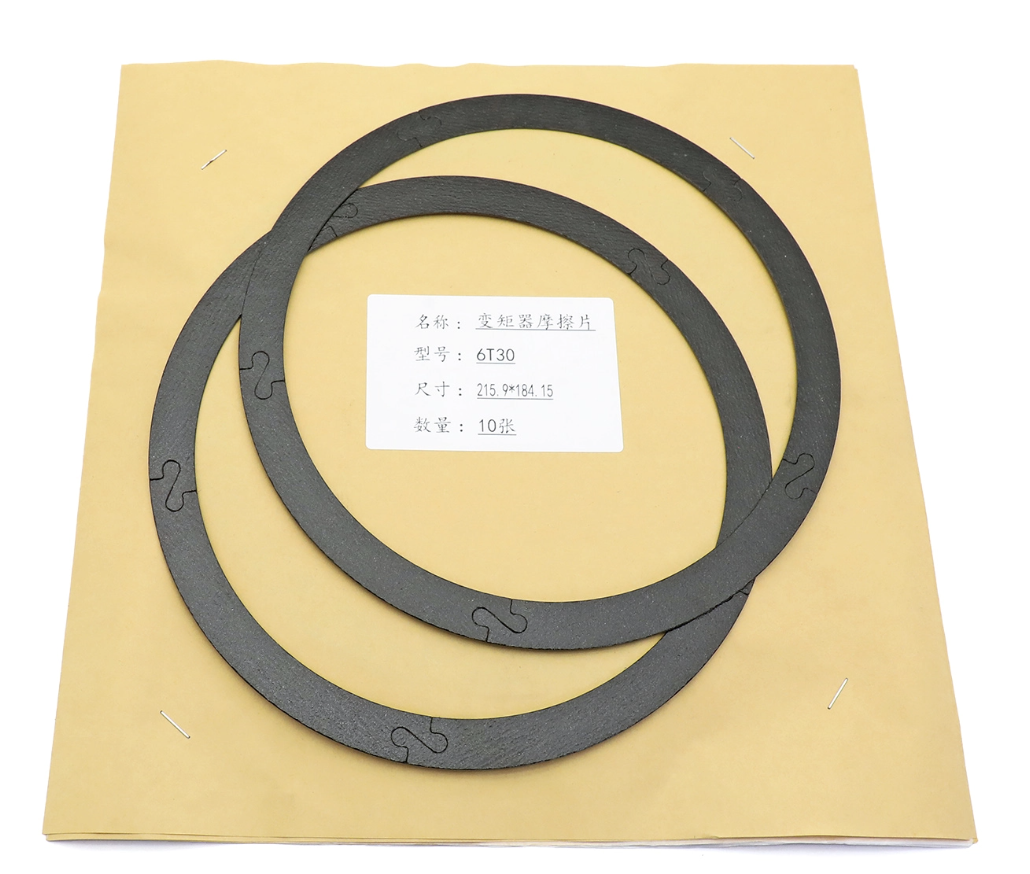

The torque converter replaces the clutch found in manual transmissions. It’s a fluid coupling that sits between the engine and transmission, allowing the engine to keep running even when the vehicle stops.
Inside the torque converter are three main components:
● The pump, connected to the engine, pushes transmission fluid outward.
● The turbine, connected to the transmission input shaft, receives fluid and spins to transfer power.
● The stator, located between pump and turbine, redirects fluid flow to increase torque at low speeds.
When the vehicle is stopped, the fluid allows the turbine to slow or stop while the engine keeps turning. As speed builds, the turbine spins faster, matching the pump’s speed to efficiently transfer power. Modern torque converters often include a lock-up clutch that mechanically connects the pump and turbine at cruising speeds to improve fuel economy.

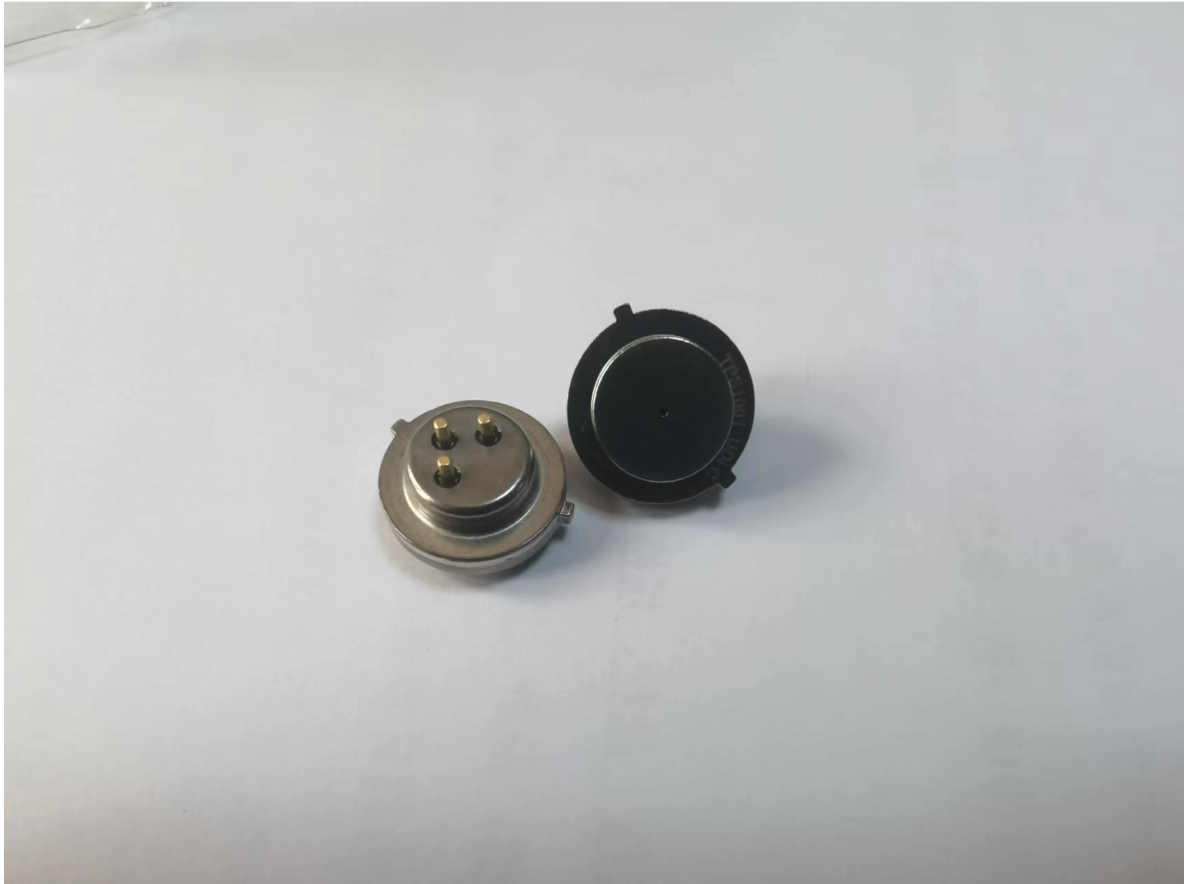

The hydraulic system is the transmission’s lifeblood. It uses pressurized transmission fluid to engage clutches and bands that control the planetary gear sets. The oil pump generates pressure, and the valve body directs fluid flow through a complex maze of channels and valves.
The valve body acts as the control center, opening and closing valves to send fluid where needed.

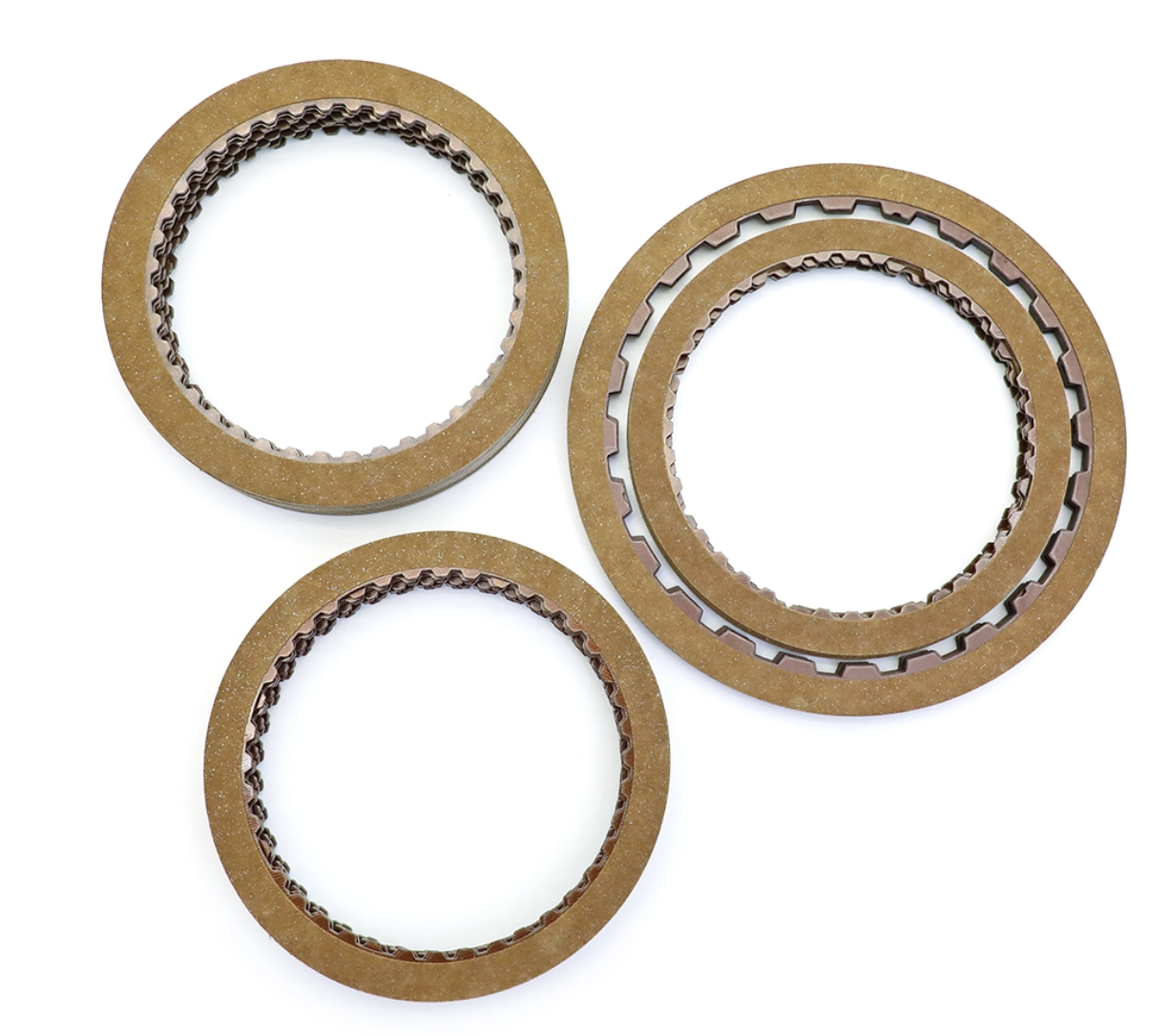

Clutch packs and bands are activated hydraulically to lock parts of the gear sets, changing gears.
Hydraulic pressure also lubricates and cools moving parts.
This system allows the transmission to shift automatically based on speed, load, and other conditions. Precision in hydraulic control ensures smooth, timely gear changes.
Modern automatic transmissions rely heavily on electronics. The Transmission Control Module is a computer that manages gear shifts by processing data from sensors monitoring vehicle speed, engine load, throttle position, and more.
The TCM controls solenoids that regulate hydraulic fluid flow.
It optimizes shift timing for performance, fuel efficiency, and smoothness.
Some systems learn driving habits and adapt shift patterns accordingly.
By coordinating mechanical and hydraulic components electronically, the TCM enables transmissions to respond seamlessly to changing driving conditions.
Tip: Regularly check and replace automatic transmission fluid to keep the hydraulic system and torque converter functioning smoothly, preventing costly repairs.
Seals and gaskets are small but mighty components in any transmission system. They keep the transmission fluid where it belongs, preventing leaks that could cause serious damage. Without effective seals and gaskets, the hydraulic pressure needed for smooth gear changes would be lost, and the transmission could overheat or fail.
Transmission fluid is essential for lubrication, cooling, and hydraulic pressure. Leaks reduce fluid levels, which leads to poor lubrication and overheating. This can cause premature wear or even catastrophic failure. Seals and gaskets act as barriers at joints and moving parts, stopping fluid from escaping. For example, the front seal prevents fluid from leaking where the torque converter connects to the transmission housing. The rear seal stops leaks around the output shaft.
Leaks often start small but worsen over time. Ignoring them can lead to costly repairs or transmission replacement. Properly functioning seals and gaskets maintain fluid integrity, helping your transmission run smoothly and last longer.
There are various seals and gaskets designed for different parts of the transmission:
Neoprene Seals: Flexible rubber-like seals used around rotating shafts. Often reinforced by springs to keep tight contact with moving parts.
O-Rings: Circular rubber rings that seal connections between stationary parts, such as the shift lever shaft.
Paper or Cork Gaskets: Thin, compressible materials placed between two flat surfaces, like the transmission oil pan and case, to prevent fluid leaks.
Rubber and Silicone Gaskets: Used in areas requiring flexibility and resistance to heat and fluid exposure.
Metal-Composite Gaskets: Sometimes used in high-pressure or high-temperature zones for durability.
Each seal or gasket must be compatible with transmission fluid and withstand heat and pressure. Over time, seals can harden, crack, or wear down, leading to leaks. Regular inspection and timely replacement are crucial.
Tip: Regularly check your transmission for fluid leaks and replace worn seals or gaskets promptly to avoid costly transmission damage and maintain optimal performance.
The drivetrain is the crucial link between your vehicle’s transmission and the wheels. It carries the power generated by the engine and transmission out to the road, enabling your car to move. Even the best transmission can’t make a vehicle go if the drivetrain isn’t working properly. Let’s explore its main components and how they work together.
The driveshaft, sometimes called the propeller shaft, is a long, spinning tube that transfers torque from the transmission to the differential. In rear-wheel-drive and four-wheel-drive vehicles, the driveshaft connects the transmission output shaft to the rear axle. It must handle lots of torque while allowing for movement as the vehicle travels over bumps and turns.
Key features include:
Flexibility: The driveshaft usually has universal joints (U-joints) at each end. These joints let the shaft flex and accommodate changes in angle between the transmission and rear axle.
Balance: Driveshafts are carefully balanced to prevent vibrations that can cause noise or damage.
Length: Depending on the vehicle size, the driveshaft can be a single piece or multiple sections connected by a center support bearing.
Without a properly functioning driveshaft, power can’t efficiently reach the wheels, leading to poor vehicle performance or even drivetrain damage.
The differential is a gearbox that sits between the driveshaft and the wheels. Its job is to split the engine’s power between the two wheels on an axle while allowing them to rotate at different speeds. This is especially important when turning corners, where the outer wheel travels farther and faster than the inner wheel.
Functions of the differential include:
Torque distribution: It sends power to both wheels but can adjust the amount each wheel receives.
Speed adjustment: It allows wheels to spin at different speeds to prevent tire wear and maintain traction.
Direction change: It changes the direction of power flow from the driveshaft (which spins longitudinally) to the wheels (which spin laterally).
Axles connect the differential to the wheels, transmitting the torque needed to turn the tires. There are two main types:
Live axles: These carry power and support the vehicle’s weight, common in trucks and older vehicles.
Half-shafts: Found in front-wheel and all-wheel-drive vehicles, these connect the differential to each wheel individually.
Together, the differential and axles ensure power is delivered smoothly and efficiently, adapting to road conditions and driving maneuvers.
Tip: Regularly inspect your driveshaft and differential for signs of wear or leaks to maintain smooth power delivery and avoid costly repairs.
Transmission systems, whether manual or automatic, can experience issues that affect vehicle performance. Recognizing these problems early helps prevent costly repairs and keeps your vehicle running smoothly.
Several signs point to transmission trouble. Watch for these common symptoms:
● Slipping Gears: The transmission unexpectedly shifts out of gear or struggles to stay in gear. You might feel the engine rev without corresponding acceleration.
● Delayed or Rough Shifting: Hesitation or harshness when changing gears, including jerking or clunking noises.
● Unusual Noises: Grinding, whining, or clunking sounds when the vehicle is in gear.
● Fluid Leaks: Transmission fluid puddles under the vehicle, often red or brown in color.
● Burning Smell: Overheated transmission fluid can emit a burnt odor.
● Warning Lights: Transmission or check engine lights illuminate on the dashboard.
● Difficulty Engaging Gears: Trouble shifting into drive, reverse, or other gears.
● Poor Acceleration or Power Loss: The vehicle feels sluggish or unresponsive.
● Overheating: Transmission gets excessively hot, often due to low fluid or internal damage.
If you notice any of these, have your transmission inspected promptly by a professional.
Proper maintenance can extend transmission life and avoid many common problems:
● Regular Fluid Checks: Transmission fluid lubricates and cools internal parts. Check fluid levels and condition regularly. Low or dirty fluid can cause slipping and overheating.
● Scheduled Fluid Changes: Follow manufacturer recommendations for fluid and filter replacement. Fresh fluid ensures optimal hydraulic pressure and prevents contamination.
● Avoid Overheating: Transmission overheating is a leading cause of failure. Keep the cooling system in good shape and avoid heavy towing beyond your vehicle’s capacity.
● Gentle Driving Habits: Avoid abrupt starts, hard shifts, or excessive idling. Smooth driving reduces stress on transmission components.
● Inspect Seals and Gaskets: Prevent leaks by checking seals regularly. Early replacement avoids fluid loss and damage.
● Use Correct Fluid Type: Using the wrong transmission fluid can harm components and void warranties.
● Address Issues Early: Don’t ignore minor symptoms. Early diagnosis prevents escalation into costly repairs or full transmission replacement.
● Professional Inspections: Have your transmission checked during routine service visits to catch wear or problems before failure.
Tip: Keep a maintenance log for your transmission fluid changes and inspections to ensure timely service and avoid unexpected breakdowns.
Upgrading your transmission components can significantly enhance your vehicle’s performance, responsiveness, and durability. Whether you drive a manual or automatic, performance upgrades help the transmission handle more power, shift faster, and last longer under demanding conditions. Let’s explore the benefits of these enhancements and some popular modifications.
● Improved Power Handling: Stock transmissions are designed for typical driving conditions. Upgraded clutches, stronger gears, and reinforced shafts allow your transmission to handle increased horsepower and torque without slipping or breaking.
● Faster, Smoother Shifts: Performance clutch packs, shift kits, and recalibrated control modules reduce shift times and improve shift feel. This means quicker acceleration and a more engaging driving experience.
● Increased Durability: Heavy-duty components such as hardened gears, upgraded synchronizers, and high-performance torque converters resist wear and heat better, extending transmission life.
● Better Control: For manual transmissions, performance clutches and lightweight flywheels improve throttle response and gear engagement. For automatics, enhanced valve bodies and TCM tuning offer more precise control over shifts.
● Customization: Many upgrades allow you to tailor your transmission’s behavior to your driving style, whether that’s aggressive racing, off-roading, or daily commuting.
● High-Performance Clutches: Multi-plate or heavy-duty clutches improve grip and reduce slippage in manual transmissions, essential for high-power builds.
● Shift Kits: These kits modify the hydraulic or electronic controls in automatic transmissions to reduce shift time and firm up shifts, improving both performance and feel.
● Upgraded Torque Converters: Performance torque converters offer higher stall speeds and better torque multiplication, helping your vehicle launch more effectively.
● Reinforced Gears and Shafts: Forged or billet gears and stronger shafts can handle more torque and resist breakage under extreme conditions.
● Lightweight Flywheels: Reducing rotational mass allows the engine to rev faster and improves throttle response in manual transmissions.
● Transmission Control Module (TCM) Tuning: Custom software tunes optimize shift points, firmness, and timing to match performance upgrades and driving preferences.
● Aftermarket Valve Bodies: Enhanced valve bodies improve hydraulic flow and shift precision in automatic transmissions.
● Cooling Upgrades: Transmission coolers and improved fluid lines help maintain lower temperatures during high-stress driving, preventing overheating and wear.
Tip: When upgrading, always ensure compatibility between components and consider professional tuning to maximize performance gains and reliability.
Understanding the key components of transmission systems, such as clutches, gearboxes, and planetary gear sets, is essential for vehicle performance. Proper maintenance of these components ensures smooth operation and longevity. Gearstar offers superior transmission products that enhance performance and reliability, providing value through innovative engineering and quality craftsmanship. Regular inspections and timely upgrades can prevent issues and improve driving experiences, making Gearstar a trusted choice for those seeking to optimize their vehicle's transmission system.
A: Key components include the clutch and clutch pedal, gearbox and gear shift lever, flywheel and input shaft, synchronizers, and selector forks.
A: Automatic systems use planetary gear sets, a torque converter, hydraulic systems, and a transmission control module for seamless gear shifts without driver input.
A: Regular maintenance prevents issues like fluid leaks, overheating, and component wear, ensuring optimal performance and longevity.
A: Costs vary widely based on the component and vehicle type; consulting a professional for an accurate estimate is recommended.
